HDCVI Accessories

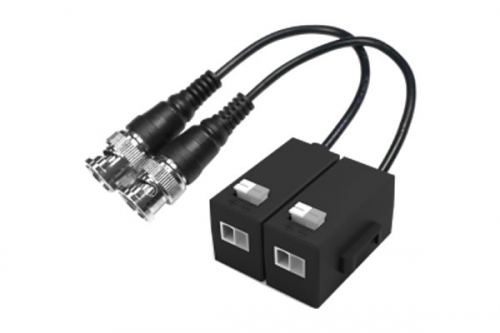

1-CH Passive Video Balun

> Real-time transmission over UTP CAT5E/6 cable;
> Passive, no need for power supply;
> Excellent anti-thunder, anti-static and anti-interference capabilities;
> Compatible format: HDCVI/TVI/AHD/CVBS;
> With female BNC connector, and pluggable screw terminal connections.

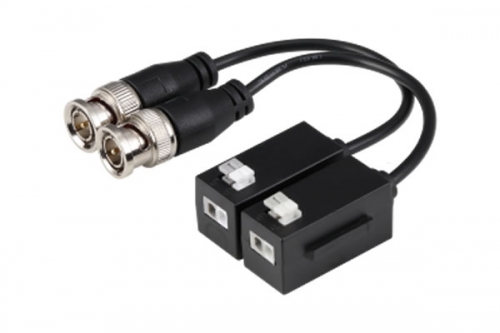

1-CH Passive Video Balun

> Real-time transmission over UTP CAT5E/6 cable;
> Passive, no need for power supply;
> Excellent anti-thunder, anti-static and anti-interference capabilities;
> Compatible format: HDCVI/TVI/AHD/CVBS;
> With female BNC connector, and pluggable screw terminal connections.

Video/Power Balun KIT

> Advantages: Use DC12V 0.7A*4 power adapter to provide 4-CH power supply for remote cameras, simultaneously simplify engineering wiring;
> Transmission effect: Use single network cable (UTP CAT5E/6) real-time transmit, no delay;
> Protection: Excellent anti-thunder, anti-static and anti-interference capabilities;
> Compatible format: HDCVI/TVI/AHD/CVBS.

16 Channel Passive HDCVI Balun

>Power supply: No need additional power supply.
>Transmission effect: Real-time transmission HDCVI/AHD/TVI/CVBS video signal without compression, video is clear and stable.
>Transmission distance: 0~400m (with passive transmitter).
>Main functions: Use 4 wires meanwhile to transmit 16-ch video signal.
>Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
>Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface.

1 Channel Passive HDCVI Balun with Power

>Power supply: Input voltage DC24-36V, can provide DC12V 8W(max) power supply to remote cameras, simplify engineering wiring.
>Transmission effect: Real-time transmission video, no delay, strong anti-interference.
>Transmission distance: 400m (max).
>Mainfunctions: Use single UTP (CAT-5E and CAT-6) real-time transmit 1-ch HD videosignal and 1-ch DC power.
>Protectionand anti-interference: Excellent anti-thunder, anti-static andanti-interference capabilities.
>Appearancestructure: ABS engineering plastics shell, small size, use RJ45 standardinterface connection mode.

1 Channel Passive HDCVI Balun

>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.

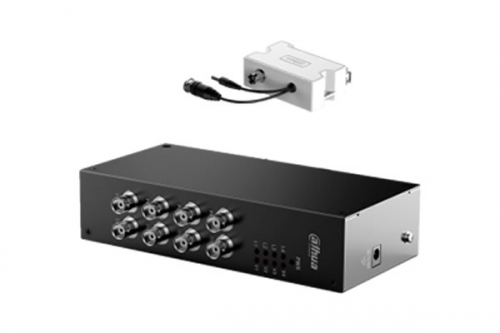

POC Transmitter

> Support 400m RG59 transmission; support max. 15.6W HDCVI camera in single channel;
> Support 400m OSD control;
> Support DC12V~36V wide voltage power supply;
> Support simultaneous power supply to max. 4 HDCVI cameras;
> Support hot plugging.

POC Transceiver

>Power supply: Input voltage DC24-36V, can provide DC12V 9W(max) power supply to remote cameras, simplify engineering wiring
>Transmission effect: Real-time transmission video, no delay, strong anti-interference. Transmission distance: 400m (max)
>Transmission distance: 400m (max)
>Main functions: Use single coaxial cable real-time transmit 1-ch HD video signal and 1-ch DC power
>Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities

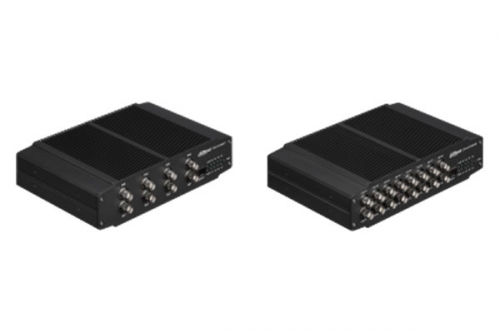

16ch HDCVI Optical Transceiver (Lite)

> High definition, real-time
> Support HDCVI video format 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30
> UPnP, easy installation
> Metal plate is used for the structure, fully enclosed dustproof design
> Industrial wide temperature design

8ch HDCVI Optical Transceiver (Lite)

> High definition, real-time
> Support HDCVI video format 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30
> UPnP, easy installation
> Metal plate is used for the structure, fully enclosed dustproof design
> Industrial wide temperature design

4ch HDCVI Optical Transceiver (Lite)

> High definition, real-time
> Support HDCVI video format 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30
> UPnP, easy installation
> Metal plate is used for the structure, fully enclosed dustproof design
> Industrial wide temperature design

Receiver(OTC202R): 1550nm transmit 1310nm receive

> Lossless non-compression real time transmission
> Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
> UPnP, easy installation
> 4 LED indicators
> Wide-range temperature application: -40ºC ~75ºC

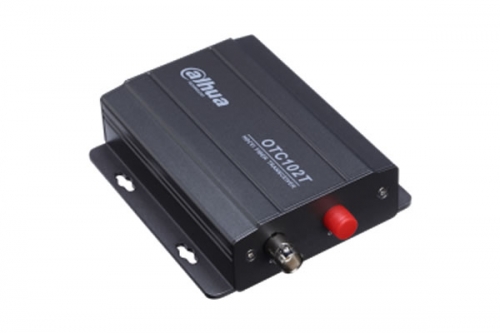

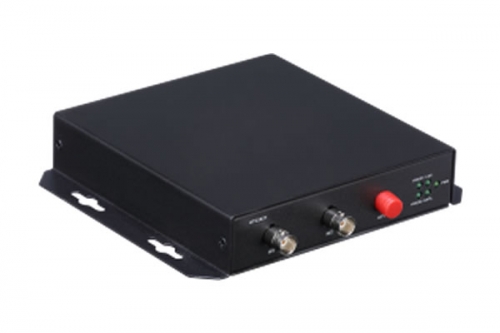

Single Channel HDCVI Optical Transceiver

> Lossless non-compression real time transmission
> Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
> UPnP, easy installation
> 4 LED indicators
> Wide-range temperature application: -40ºC ~75ºC

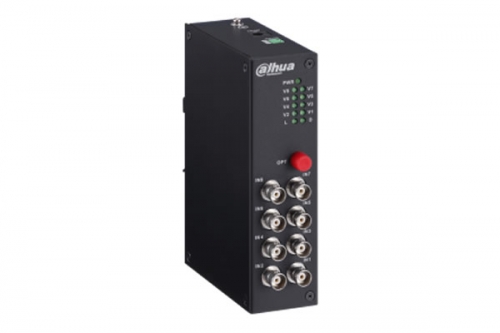

Eight-Channel HDCVI Optical Transceiver

>Lossless non-compression real time transmission
>Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
>UPnP, easy installation
>LED indicators
>Wide-range temperature application: -40ºC ~75ºC

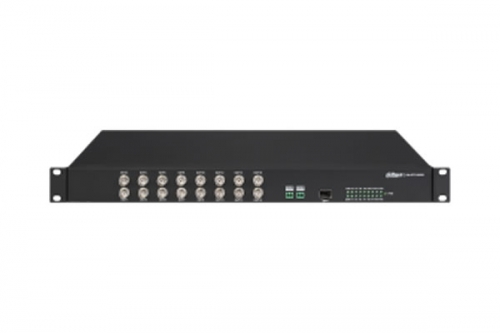

16-Ch HD Video Distributor

> Support 16-ch HDCVI Input, 32-ch output, each input is corresponding to 2 output
> Support HDCVI video format: 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25 and 1080P/30
> Lossless, real-time transmission
> Compatible CVBS, AHD, HDTVI signal distribution
> Appearance dimension: enterprise-level metal structure design, 19-inch 1U chassis

HDCVI Distributor

> Support 1/3 channel In/Out
> Lossless non-compression transmission
> Support video format as 25/30/50/60fps@720P & 25/30fps@1080P
> UPnP, easy installation
> LED indicators
> Wide-range temperature application: -40ºC ~75ºC

HDMI-HDCVI Converter

> Input HDMI video signal, self-adaptive output HDCVI signal
> HDMI support mode, 1024*768@60Hz, 1280*720@50/60Hz, 1280*1024@60Hz,
> HDCVI output format, 720P/50, 720P/60, 1080P/25, 1080P/30
> Fully enclosed dustproof design

HDCVI Video Converter

> Self-adaptive output HDCVI, HDMI, VGA, CVBS signal
> Lossless real time non-compression transmission
> Support 2 dial switches and indicate 4 Baud rate: 2400b/s, 4800b/s, 9600b/s and 115200b/s
> Fully enclosed dustproof design

HDCVI External Power Isolator

>Power supply isolator, to solve the HDCVI image interference caused by power supply effectively.
>Apply to indoor or in junction box.
>Working Temperature: -30~60℃.

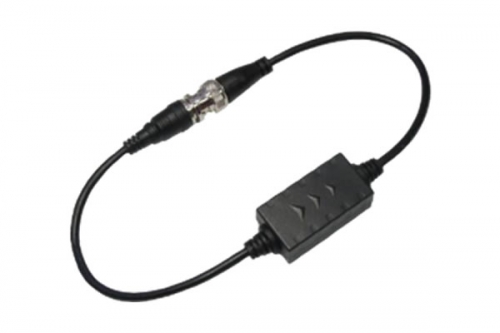

HD Video Isolator

>HD video isolator, to solve the HDCVI image interference caused by ground loops effectively;
>Apply to indoor or in junction box
>Working Temperature: -20~55℃

UTC Controller

>Support different formats(HDCVI/AHD/HDTVI/CVBS) switch,which is to satisfy the
requirements of different storage deviceenvironments for clients.
>Various format indicator lights,which makes it convenient forusers to check the
current format status and prompt if theformat switch is successful.

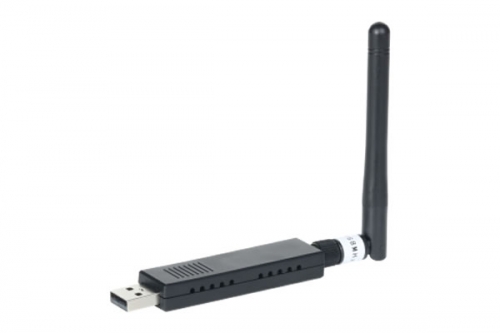

Airfly Wireless Module

> 433/868/915MHz international wireless frequencies
> Transimission range up to 150m open space
> Supports USB2.0 & USB3.0, plug & play
> Low power consumption, long-lasting and energy-saving
> Industrial quality ensures 24X7 highly reliable operation
